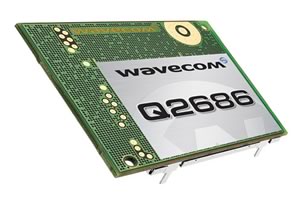

WaveCom Q2686

WaveCom Q2686

Equipped with up to 44 GPIOs, the Q2686 is especially suited to applications which require a high number of connections. The Open AT® OS runs on an ARM9 core, providing applications with up to 87 MIPS (using VariSpeed). It features a market-leading range of peripheral interfaces, including companion Bluetooth® and GPS.

Core processor ARM9, 32 bit, 104 MHz running Open AT® RTOS as standard
Memory Internal, supports up to 128Mb Flash, 128 MB PSRAM
Digital Control Up to 44 GPIO, 2 INT, 2 SPI, 1 I2C, 5 x 5 keyboard
Digital Comms 2 UART, USB 2.0
Analogue Interfaces 2 ADC
Audio Interfaces 2 analogue channels, 1 PCM
Cellular Radio Global operation (auad GSM band: 800/900/1800/1900 MHz)
Cellular Data GSM standard SMS, Fax, CSD (circuit), GPRS cl 10 (packet)
Cellular Voice Quad codec (FR/HR/EFR/AMR), VDA2A
RF and IO connectivity 1 UFL connector for GSM FR, 1 RF connection which allows to support board to board solution, 100 I/O Pins connector
Dimensions L40 x W32.2 x H 4mm
