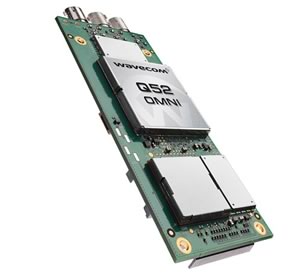

WaveCom Q52 Omni

WaveCom Q52 Omni

Enjoy the benefits of reliable connectivity wherever you are. The Q52 Omni, with the WMP100 Wireless Microprocessor® at its core, combines cellular wireless (GSM/GPRS) and satellite data connectivity with GPS navigation and is ideally suited for asset tracking solutions.

Core processor ARM9, 32 bit, 104 MHz running Open AT® RTOS as standard
Digital Control Up to 18 GPIO, SPI
Digital Comms 2 UART
Analogue Interfaces 2 ADC, DAC
Cellular Radio Global operation (quad band 800/900/1800/1900 MHz)
Cellular Data GSM standard SMS, Fax, CSD (circuit), GPRS cl 10 (packet)
Satellite Data Transmit: 148 to 150.05 MHz Receive: 137 to 138 MHz
Power 5W
Location Solution GPS option
RF and IO connectivity 3 FAKRA connectors, 40 pin I/O connector, Integrated SIM card holder
Dimensions 114.6 mm x 49.5 mm x 10 mm
